Product Information

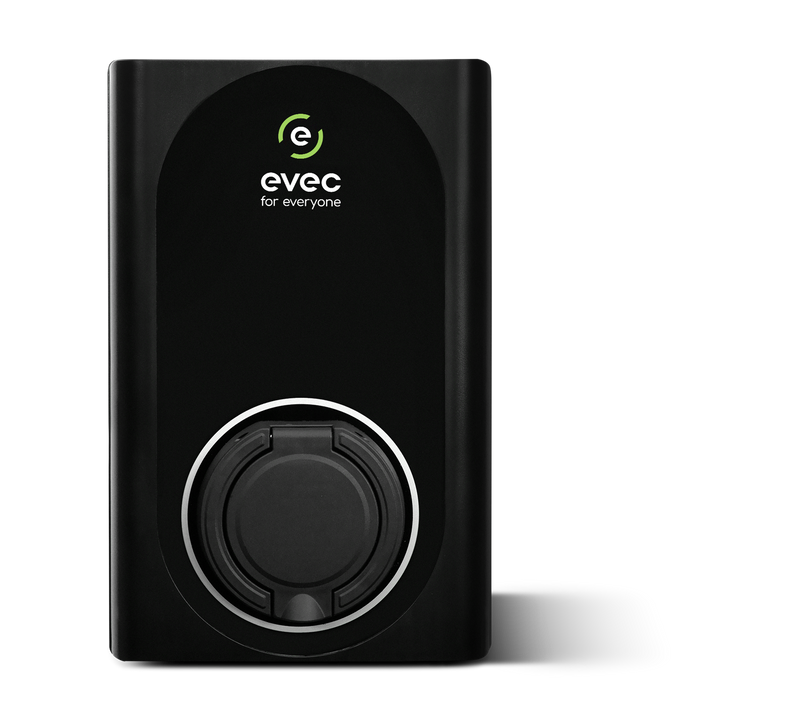

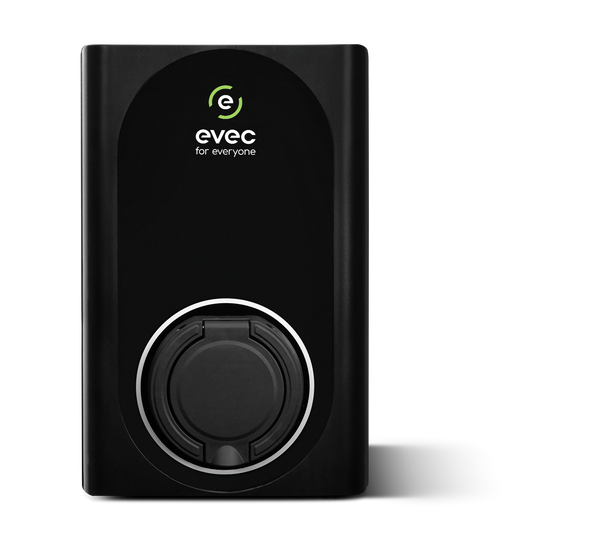

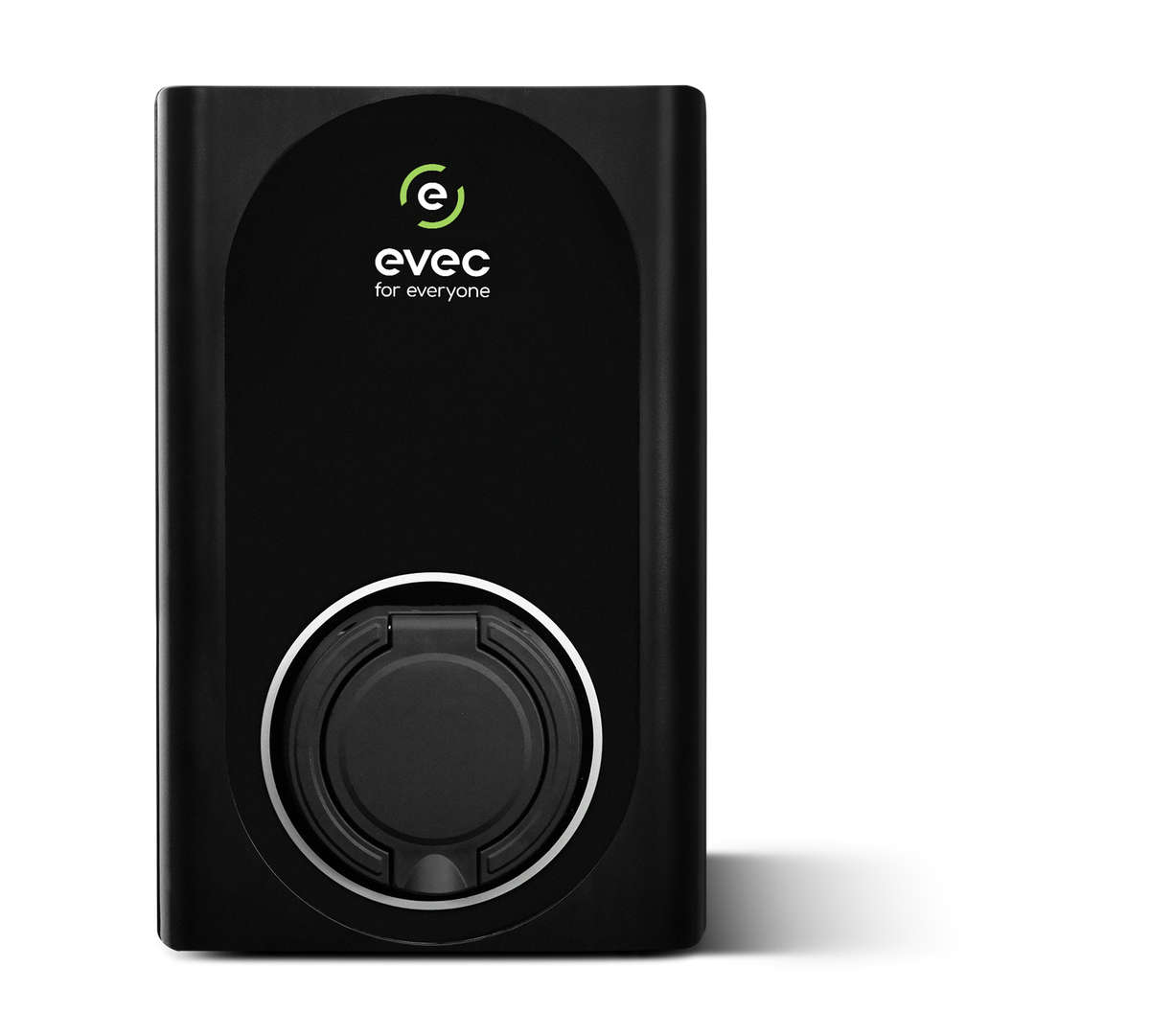

Our universal three-phase VEC02 is an affordable fully featured EV and PHEV charger that is designed for a three-phase power supply, normally in commercial environments like the workplace. This enables the charger to charge the vehicle at up to 22kW’s, significantly faster than the domestic home version VEC01. Despite its low cost, it’s a compact, modern unit that doesn’t compromise on quality and is entirely compatible with all electric and plug-in hybrid vehicles provided you have the right cable.
Features
- Universal charging port
- Cost-effective and compact
- Built-in LED lights that display charging status and error messages
- Built-in PEN Protection
- Full OCPP 1.6J protocols including smart charging
- Load Balancing
- Evec App
- Corrosion resistant and fire retardant
- IP55 rated dust and weatherproof
- CE and UKCA approved
Click here for the product manual
Click here for installation and maintenance information
| Power | 22kW |
| Compatibility | Type 2 Socket to Type 1 & Type 2 Inlet Port |
| IP / Durability Grade | IP55 |
| Working Temperature | -40°C - ~55ºC |
| Net Weight | 1.8kg |
| Over Current Protection | ✓ |
| Residual Current Protection | ✓ |
| Certification | CE/UKCA |
